Polariton Technologies, leader in high-speed electro-optic (EO) devices for optical communications, announces today new experimental results achieving 448 Gbit/s transmission in the O-band using commercial plasmonic silicon ring resonator modulators.

The measurements are related to the introduction of Polariton’s 8-channel transmitter PIC, designed for 3.2T-DR8 optical engines and transceivers. With an electro-optical bandwidth exceeding 145 GHz, ultra-compact integration, and compatibility with high-volume silicon photonics manufacturing, the PIC provides sufficient performance for 400G and 800G per lane operation, showing a way forward for a few technology generations.

As the industry targets ramp-up of next generation transceivers as early as 2027, plasmonic modulators deliver the necessary performance today. Together with energy efficiency and thermal robustness, Polariton is positioning plasmonics as the enabling technology for future data center components, AI, and HPC interconnects.

The work performed in collaboration with the ETH Zurich and the IEF (Institute for Electromagnetic Fields) marks a milestone for optical communication and is unveiled at the European Conference for Optical Communication in Copenhagen (ECOC 2025), as it highlights the pushing the boundaries of connectivity in data centers.

Plasmonic ring resonator modulators (RRMs) fabricated on silicon photonics employed at 1310 nm with PAM4 or higher-order signaling, establish best-in-class metrics for compact transceivers like CPO. While the results showcase data rates for PAM4 modulation, it also confirms the viability of PAM6 and PAM8 signaling for higher throughput. Reaching a steady improvement of what is possible in laboratory setups, the measurement instruments are the limiting factors in terms bandwidth.

“Reaching 448G per lane in the O-band with our plasmonic silicon modulators is an important first milestone. The next step is to co-optimize this device with high-speed electronics in an optical transmit engine to unlock their full performance and power consumption below the 1 pJ/bit” says Benedikt Baeuerle, co-CTO of Polariton. “The combination of silicon photonics and plasmonics will be key for next generation optical transceivers like CPOs where bandwidth, density, and power efficiency converge.”

The employed EO modulators excel for their footprint and the versatility to be integrated into a multitude of silicon photonics processes, as a back-end addition to standard semiconductor processing. Unlike silicon microrings, these components have been proven to work stable for long periods without the need of retuning after small temperature changes.

About Polariton

Polariton is a Swiss designer and manufacturer of high-performance photonic integrated circuits (PICs) for ultra-high-bandwidth and low-power applications in communication, computing, test & measurement, space, and quantum technologies. Exceptional performance is achieved by combining the established silicon photonics platform with plasmonic active devices, enabling operation in sub-THz and THz regimes with Mach-Zehnder and ring resonator modulators.

Follow us on LinkedIn @polariton-technologies

Media Contact
Helena Echeverri​​​​
info@polariton.ch
+41 44 589 51 29

Welcome to the Polariton Knowledge Center, your go-to hub for the latest in plasmonics, photonic integrated circuits (PICs), and ultra-fast electro-optic modulation.

Whereas you’re diving into the fundamentals or exploring advanced applications, this centralized directory informs you about related papers and information about the plasmonic and photonics information from Polariton.

Specifically, you will find here a curated repository of technical knowledge, designed to support engineers, researchers, product developers, and students working with high-speed optical communication systems.

Regardless if terahertz (THz) bandwidth modulators to cryogenic photonics for quantum computing. Moreover, it showcases innovations shaping the future of photonic technologies in our own Polariton style.

Nonetheless, we believe that access to well-structured, credible knowledge accelerates innovation, this is why you will find:

— Peer-reviewed publications showcasing research in plasmonic PICs
— Tutorials
— Frequently asked questions (FAQ)
— In-depth articles exploring use cases from quantum communication to data centers

Applications Covered

In essence, this content is tailored to multiple application areas, including:

— High-speed fiber-optic communication
— Sub-terahertz wireless transmission
— Photonic links in cryogenic environments
— Integration of plasmonics with silicon photonics
— Quantum photonics and on-chip signal processing
— Featured Topics and Publications

Lastly, we believe in collaboration across industry and academia. That’s why we refer to seminal works from ETH Zurich, Optica, IEEE, ACS Photonics, and more. You’ll find papers co-authored by leaders in the field, such as Prof. Juerg Leuthold, Claudia Hoessbacher, and Wolfgang Heni.

Polariton Technologies leads the way in high-speed, energy-efficient plasmonic modulators and photonic integrated circuit (PIC) components. Our cutting-edge Plasmonic Design Kit (Polariton PDK) enables groundbreaking advancements in optical communication, offering unmatched bandwidth, ultra-low power consumption, and compact designs.

Plasmonic Building Blocks are at the core of our PDK, providing the essential elements for high-speed, low-power optical signal processing. These components, including phase shifters, ring resonators, antennas, and couplers, leverage plasmonic technology to achieve compact designs with superior efficiency. By integrating Plasmonic Building Blocks, designers can create innovative photonic circuits with unprecedented performance in bandwidth and energy consumption.

Phase shifter: provides high-speed phase modulation of light.

• 3-dB EO bandwidth >500 GHz
• Plasmonic slot length range 5 to 25 µm
• Plasmonic slot width typ 100 nm
• Plasmonic losses ~0.36 dB/µm. For a length of 10 µm, one achieves <4 dB insertion loss including photonic to plasmonic converters
• Choice of slot materials
• V_π is a consequence of slot geometry and other parameters

W. Heni, et al, Plasmonic IQ modulators with attojoule per bit electrical energy consumption (Nature Communications, 2019)

Ring resonator modulator: modulates the optical path length of the ring to shift the resonance peak.

• 3-dB EO bandwidth >170 GHz
• Insertion loss <1.5 dB (in coupler), <6.5 dB (fiber to fiber)
• Drive voltage ~0.6 Vp for 408 Gbps transmission
• Proven temperature stability (published papers)

M. Eppenberger, et al, Resonant plasmonic micro-racetrack modulators with high bandwidth and high temperature tolerance (ECOC, 2021)

Antenna: directly converts RF to optical signals.

• ​Direct free-space to optical conversion

• Multiple designs possible for operation from GHz to THz

C. Benea-Chelmus, et al, Electro-optic interface for ultrasensitive intracavity electric field measurements at microwave and terahertz frequencies (Optica, 2020)

Mach-Zehnder modulator: separates light into two optical paths; the light traveling in these pathways has its phase modulated before recombination.

• 3-dB EO bandwidth >500 GHz
• Plasmonic slot length range 5 to 25 µm
• Plasmonic slot width typ 100 nm
• No travelling-wave electrodes
• Waveguide losses 3 to 5 dB/cm

Example: in a typical plasmonic chip the waveguides are 1 to 2 mm which leads to <1dB losses

B. Baeuerle, et al. 120 GBd plasmonic Mach-Zehnder modulator with a novel differential electrode design operated at a peak-to-peak drive voltage of 178 mV (Optics Express, 2019)

Thermo-optic phase shifter (heater): changes the phase by injecting a current through a resistive materiel above the waveguide.

• Serves to set the operating point to achieve optimal extinction ratio
• On-off ratio (ER) >30 dB
• On-off power ~10 mW

M.Burla, et al. 500 GHz plasmonic Mach-Zehnder modulator enabling sub-THz microwave photonics (APL, 2019)

Grating coupler: couples light from a fiber into the PIC from the top side, and vice-versa.

• Insertion loss <2.5 dB​
• Optimized for C-band (1550 nm)
• Available for O-band (1310 nm)

Edge coupler: couples light from a fiber into the PIC from the side.

Combiner / splitter: separates / combines light to two waveguides with losses <1 dB.

Ring filter: filters certain wavelengths that are multiples of the length of the ring.

Directional coupler: couples light from one waveguide to another.

What matters most to your application: Speed, performance, miniaturization, or power efficiency? Let us know.

At Polariton, we’ve significantly designed our Process Design Kit (PDK) helping you turn ideas into high-performance Photonic Integrated Circuits (PICs) correspondingly addressing the real challenges of today’s datacom, sensing, T&M, wireless, and quantum industries.

At Polariton, we offer a reliable silicon photonics and plasmonics prototyping line that’s open to 3rd parties for collaborations and dedicated wafers. Most important, our services are designed to cater to the needs of research institutes, material manufacturers, and industrial partners who seek to take advantage of our unique capabilities and attractive turn-around cycles.

Similarly, our proven and scalable silicon photonics technology means that we can help you get your products to the market faster. Undoubtedly with plasmonics, we can also provide you more advanced electro-optical circuits, giving you a significant edge over your competition. Moreover, you’ll be able to fit more circuits on the same silicon real estate, ensuring that your products are future-proof.

Likewise, we understand that the market demands next-generation low-power photonic circuits, and we’re here to help you meet that demand. And generally, with our cutting-edge technology and expertise, you can rest assured that you’ll be ahead of the curve.

Subsequently, designers can choose from a list of building blocks offered by Polariton and connect them by optical routing using silicon photonics waveguides. Further, the building blocks are versatile and suitable for various applications.

Below, we explain how we support you.

First Name

Last Name

Email

Phone

Company

City

I accept the Polariton’s data privacy statement (Read Data Privacy).

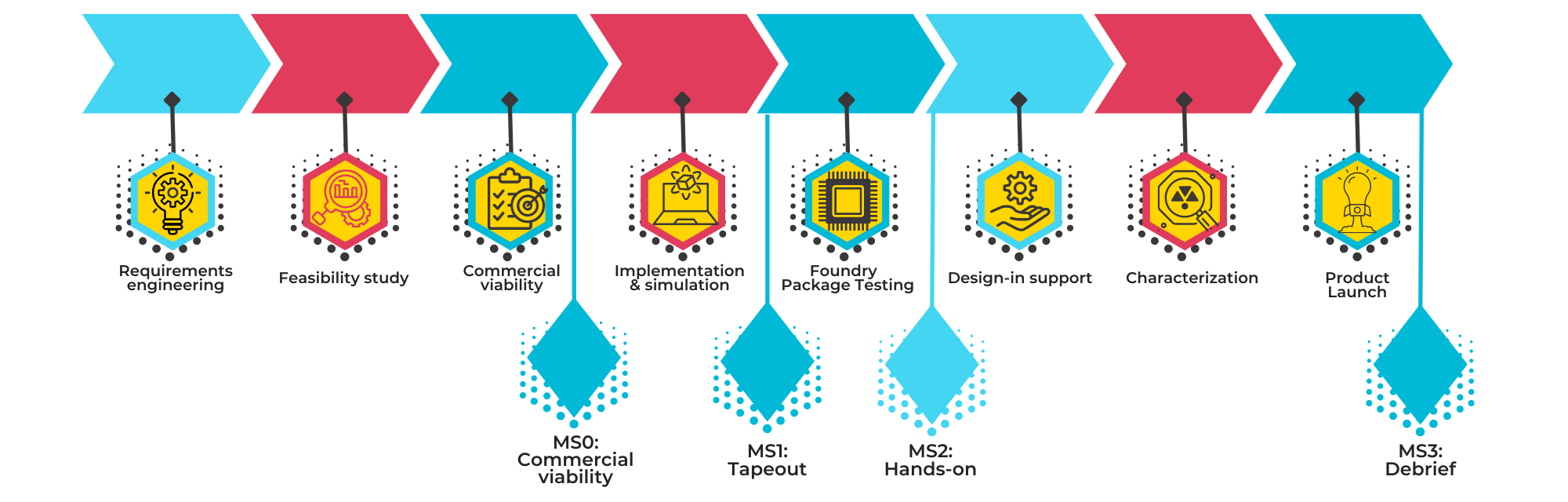

The Polariton way follows proven engineering methodologies and criteria including requirements engineering are captured in Jira, a state-of-the-art project management tool and available to the customer.  Simultaneously, followed by a feasibility study that looks into project, product, processes and people.
